MULTIPURPOSE DOORS

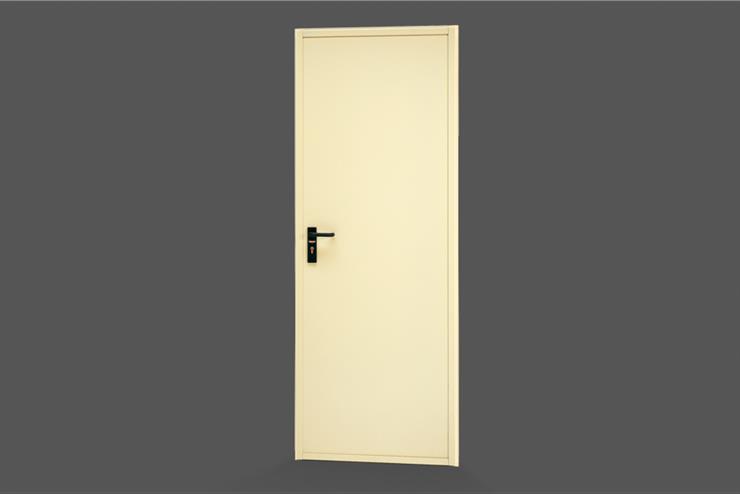

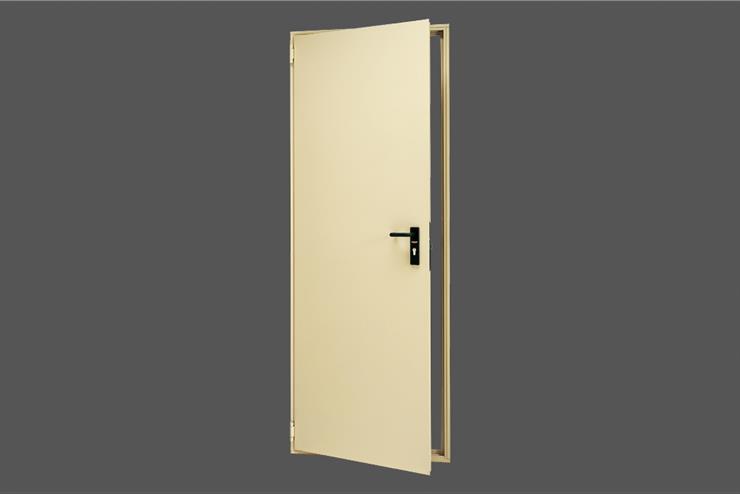

SINGLE HINGED MULTIPURPOSE DOOR

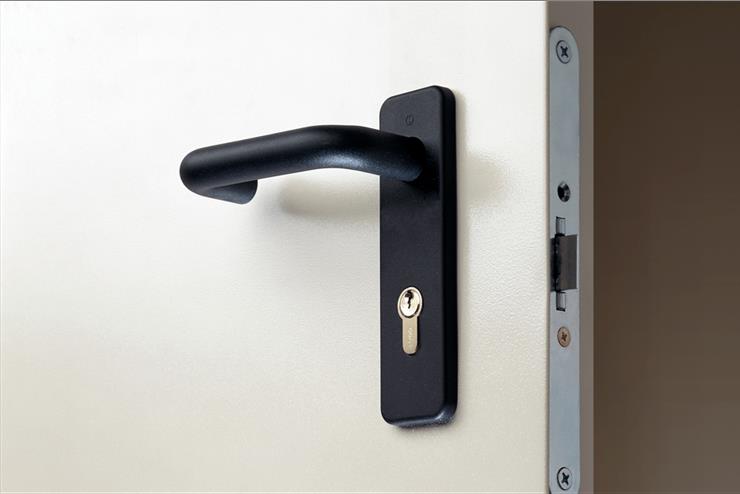

Made in galvanised steel, strengthened with internal rigid reinforcement in alveolar fibre, total thickness 39 mm. Standard locking with cylinder hole and insert for patent type keys, included. Black accident-proof handle with steel core. Thermoset epoxy powder paintwork with scratchproof embossed finish, standard colour RAL 1015. For a personalized choice, are available to order, all the colors of the RAL range. Reversible door with bottom rebate adaptable to the finished floor or removable. All doors designed for application of the 3-point locking system kit. Angle frame assembled for fixing on site with rag bolts/anchors.

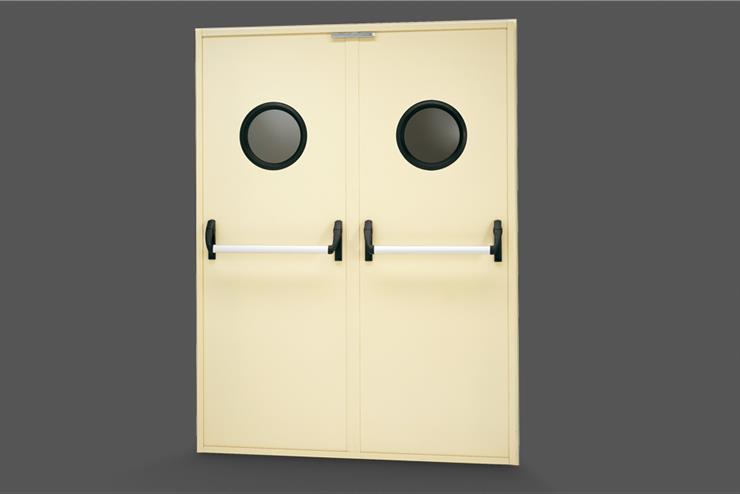

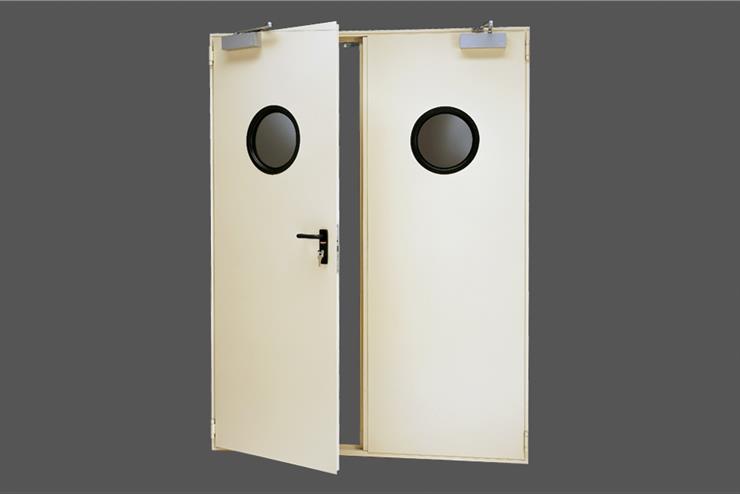

DOUBLE HINGED MULTIPURPOSE DOOR
Made in galvanised steel, strengthened with internal rigid reinforcement in alveolar fibre, total thickness 39 mm. Standard locking with cylinder hole and insert for patent type keys, included. Black accident-proof handle with steel core. Thermoset epoxy powder paintwork with scratchproof embossed finish, standard colour RAL 1015. For a personalized choice, are available to order, all the colors of the RAL range. Reversible door with bottom rebate adaptable to the finished floor or removable. All doors are designed for application of the 3-point locking system kit. Angle frame assembled for fixing on site with rag bolts/anchors. Secondary door with central dog bold for upper and a lower locking.

Interior/External finish • RAL colours

1015 1015
1003 1003
3000 3000
3003 3003
9002 9002
8019 8019
3005 3005
5013 5013
6005 6005
6009 6009
6011 6011
6029 6029
7001 7001
7030 7030
7032 7032
7035 7035
8007 8007
8011 8011
8014 8014
8017 8017
7016 7016
9003 9003
9010 9010
9005 9005

POLYESTER POWDER-COATED PAINT FINISH FOR THE FRAME

The quality and durability of the De Nardi overhead doors are guaranteed thanks to the stove-enamelled polyester powder paint finish. The painting is carried out in the up-to date automated plant, where it goes through an efficient production cycle: phosphating-cleaning/degreasing in a tunnel, double rinsing-kiln drying at 130°-polyester powder spraying in robotised or manual booth (average thickness 40 micron)-drying in oven at 200°C.
