PRATIC

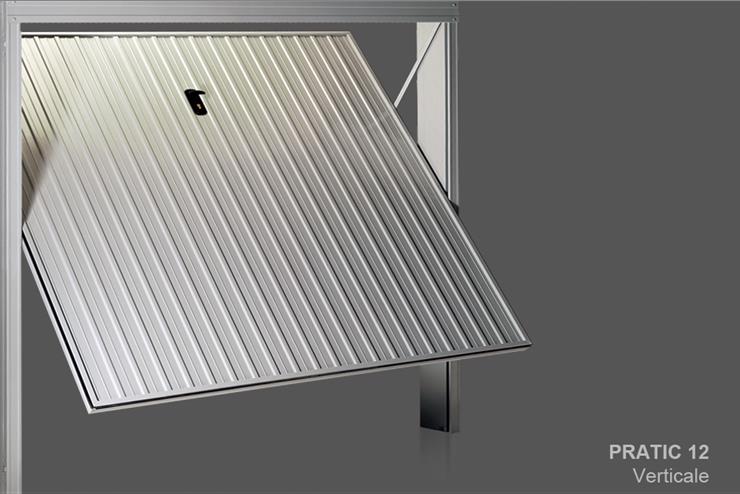

Model 12

12 is the overhead door with counterweights made in pressed, reinforced galvanised steel, with jambs of only 6 cm, suitable for measurements up to W. 250 cm. The door frame is made with an exclusive galvanised steel profile in which a rubber sealing strip can be housed. It comes ready assembled for easy fitting, complete with Yale type lock with handle and internal release, anti-fall device, cement counterweights, ropers and anchoring rag bolts .

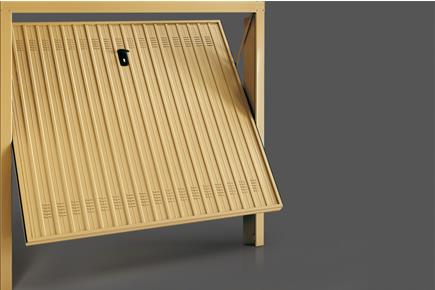

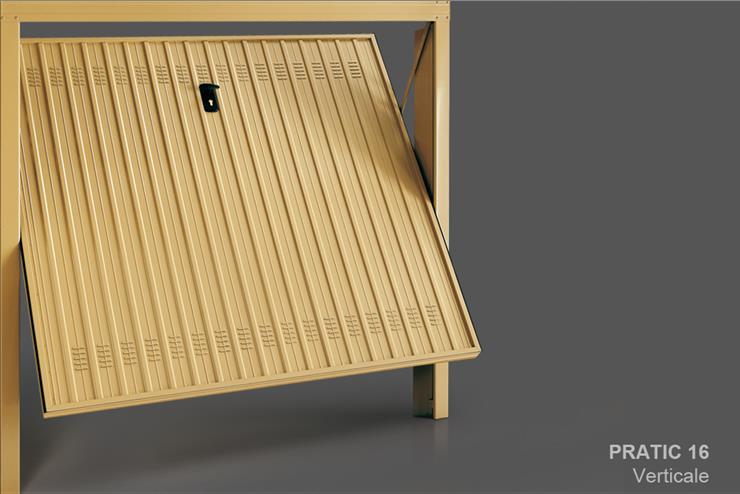

Model 16

16 is the overhead door with counterweights made in pressed, reinforced galvanised steel, with jambs of only 8 cm, suitable for measure ments up to W 340 cm. The door frame is made with an exclusive galvanised steel profile in which a rubber sealing strip can be housed. It comes ready assembled for easy fitting, complete with Yale lock with handle and internal release, anti-fall device, cement counterweights, ropers and anchoring rag bolts.

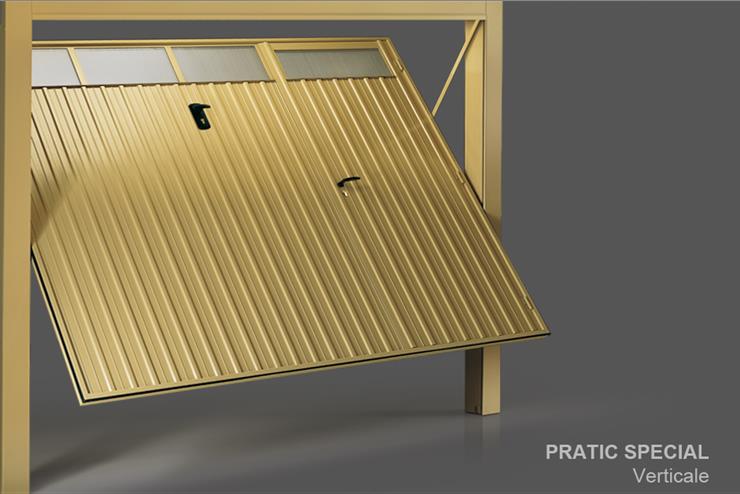

Model SPECIAL

Special is the overhead door with counterweights made in pressed, reinforced galvanised steel, with jambs of 12-14-16 cm, suitable for measurements up to W 650 x H 280 cm. The door frame is made with an exclusive reinforced steel profile, 80 mm, designed to house the rubber sealing strip. It comes ready assembled for easy fitting, complete with Yale type lock with handle and internal release, set-up for motor-drive unit, anti-fall system against the accidental breaking of the cables, cement counterweights, ropers and anchoring rag bolts.

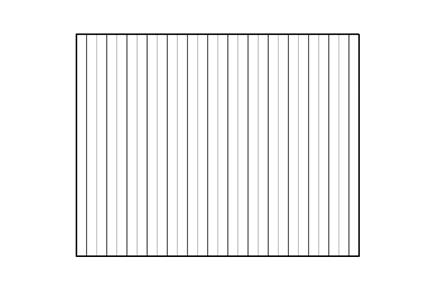

Aesthetics

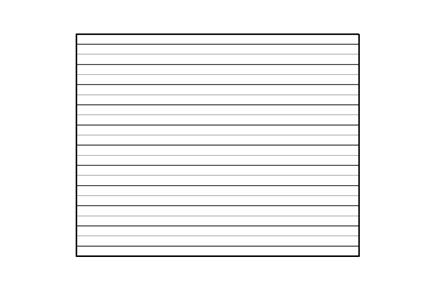

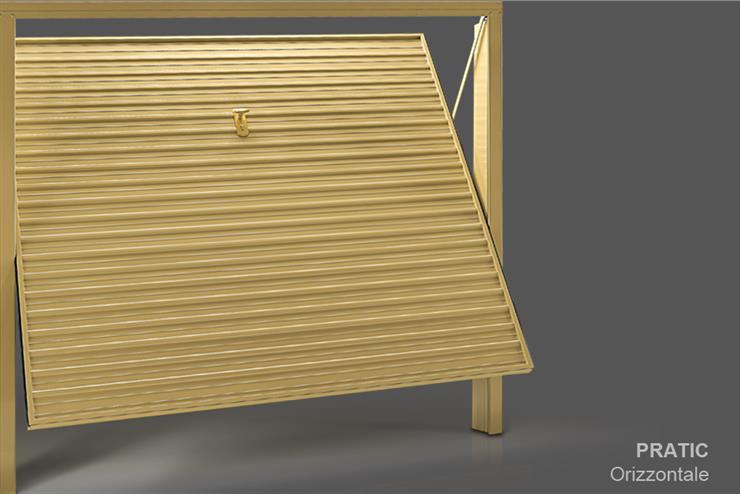

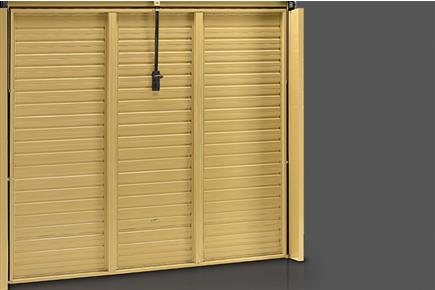

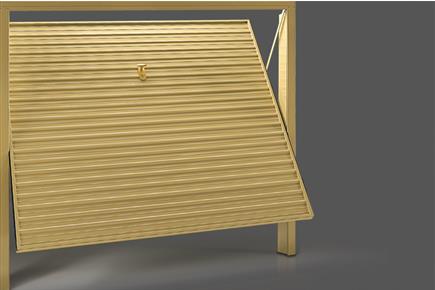

HORIZONTAL

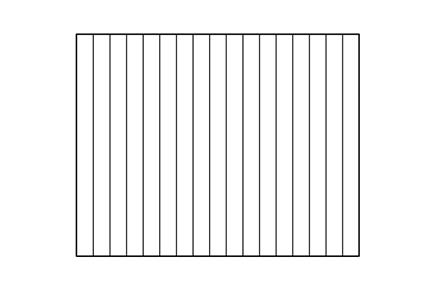

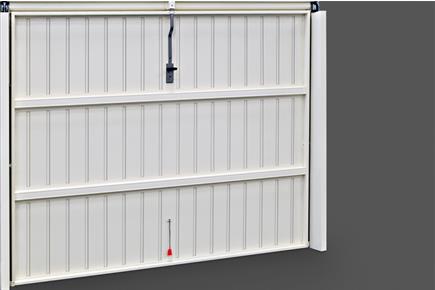

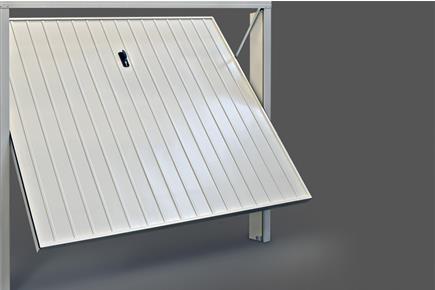

EXTRA LARGE - V

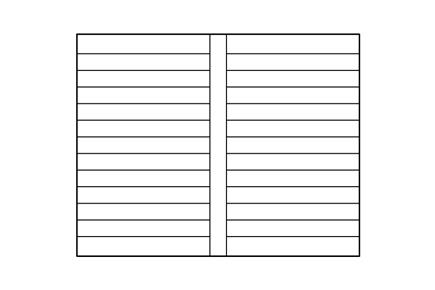

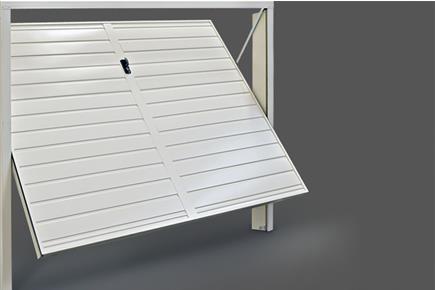

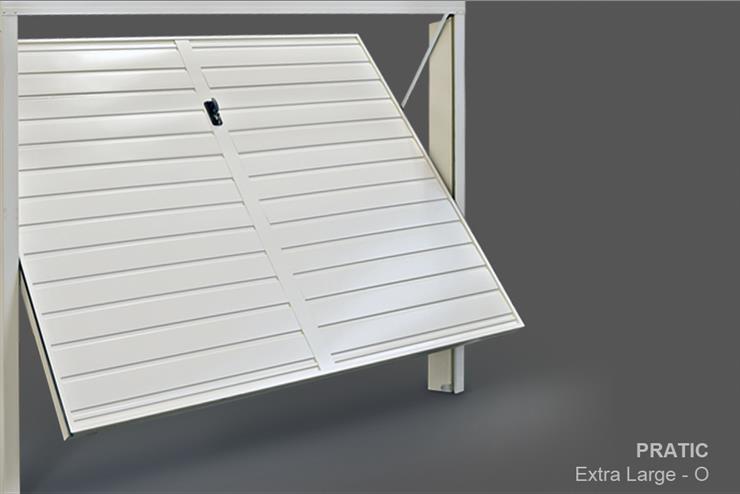

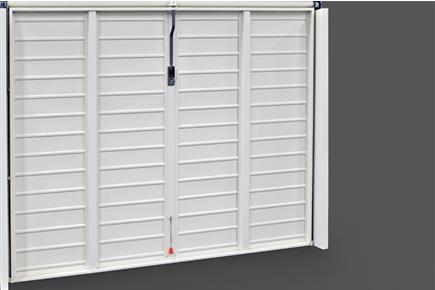

EXTRA LARGE-O

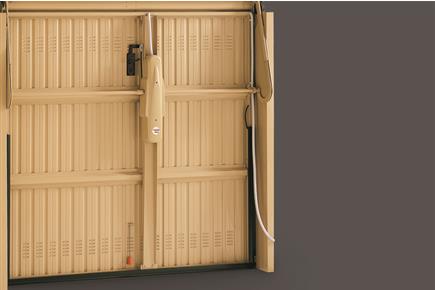

Inner side

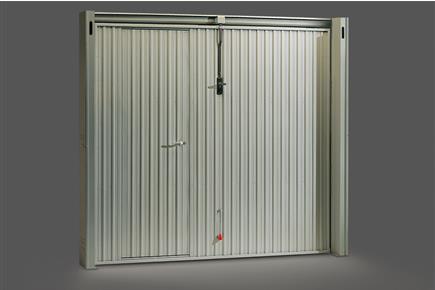

NON-INSULATED VERSION

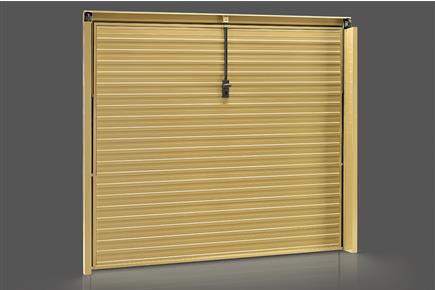

INSULATED VERSIONS

Finish • RAL colours

1015 1015
1003 1003
3000 3000
3003 3003
9002 9002
8019 8019
3005 3005
5013 5013
6005 6005
6009 6009
6011 6011
6029 6029
7001 7001
7030 7030
7032 7032
7035 7035
8007 8007
8011 8011
8014 8014
8017 8017
7016 7016
9003 9003
9010 9010
9005 9005

POLYESTER POWDER-COATED PAINT FOR THE FRAME

The quality and durability of the De Nardi overhead doors are guaranteed thanks to the stove-enamelled polyester powder paint finish. The painting is carried out in the up-to-date automated plant, where it goes through an efficient production cycle: phosphating-cleanin/degreasing in a tunnel, double rinsing, kiln drying at 130° C, polyester powder spraying in robotised or manual booth (average thickness 40 micron) and drying in oven at 200° C.

SALT FOG RESISTANT PAINTING

If the doors De Nardi are installed near the sea, we are able to offer a special anti-corrosive powders coating, which guarantees the maximum protection against the salt fog and various environmental corrosive agents.
