STEEL DOORS PRATIC

PRATIC STEEL DOOR - SINGLE LEAF
It is made entirely in pressed galvanized steel and it is strengthened with internal tubular reinforcements that make it crushproof. The door frame is made with a galvanized - steel tubular profile. It is delivered already assembled for an easier fitting, with anchoring rag bolts and a Yale - type lock with handle for both from outside and inside closure. Ral finishes are the same as the PRATIC overhead doors.

Minimum measures: 60 cm width - 160 cm height
Maximum measures: 130 cm width - 280 cm height

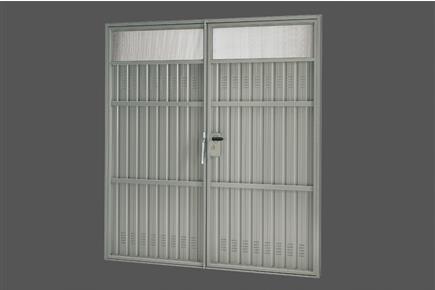

PRATIC STEEL DOOR - DOUBLE LEAF
It is made entirely in pressed galvanized steel and it is strengthened with internal tubular reinforcements that make it crushproof. The door frame is made with a galvanized steel tubular profile. It is delivered already assembled for an easier fitting and supplied with one handle for both internal and external closure of the main door and another handle with internal release for closure of the secondary door.

Minimum measures: 120 cm width - 160 cm height
Maximum measures: 260 cm width - 280 cm height

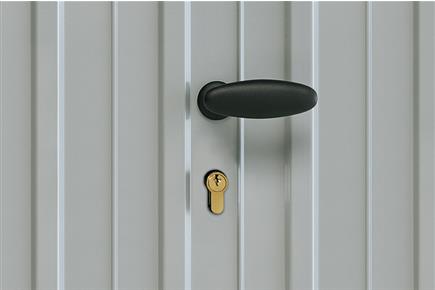

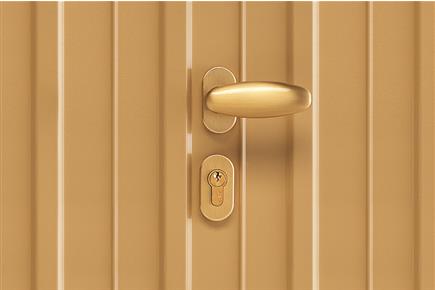

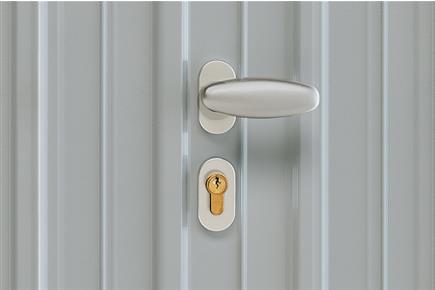

Handles

The coordinates, overhead doors and pedestrian door are three:

Bronze-finish aluminium Bronze-finish aluminium
Aluminium Aluminium
PVC PVC

Glazed fanlights

A glazed area may be inserted into the door, also with bottom-hinged opening 10 mm. Honey comb polycarbonate sheet may be supplied A glazed area may be inserted into the door, also with bottom-hinged opening 10 mm. Honey comb polycarbonate sheet may be supplied
A fixed glazed fanlight (also with bottom - hinged opening) may be installed above the overhead door. It may be supplied on request with honeycomb polycarbonate sheets (thickness 10 mm) A fixed glazed fanlight (also with bottom - hinged opening) may be installed above the overhead door. It may be supplied on request with honeycomb polycarbonate sheets (thickness 10 mm)

Aeration

AERATION HOLES

Hodded aeration holes positioned at the top and at the bottom Hodded aeration holes positioned at the top and at the bottom
They are rectangular (24 x 18 mm) positioned at the top and at the bottom They are rectangular (24 x 18 mm) positioned at the top and at the bottom

PERFORATED DOOR OR LATERAL PANELS (Width 50 cm)

Holes Ø 6 mm (aeration 32% surface area) Holes Ø 6 mm (aeration 32% surface area)
Perforated door covering with square holes 10x10 mm (aeration 35% surface area) Perforated door covering with square holes 10x10 mm (aeration 35% surface area)
Perforated door covering with square holes 30x30 mm, wire 3 mm (aeration 67% surface area) Perforated door covering with square holes 30x30 mm, wire 3 mm (aeration 67% surface area)

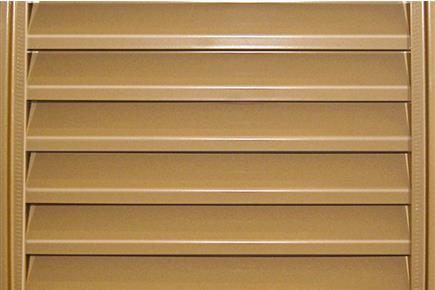

Door with shaped plates to Z, assembled interlocking of tubular (aeration 36% surface area) Door with shaped plates to Z, assembled interlocking of tubular (aeration 36% surface area)
Pressed plate top cover (H. max 30 cm) Pressed plate top cover (H. max 30 cm)
Corrugated sheet Corrugated sheet
Corrugated sheet, perforated Ø 6 mm (aeration 45% surface) Corrugated sheet, perforated Ø 6 mm (aeration 45% surface)
Corrugated perforated sheet 10 x 10 mm (aeration 40% superficie) Corrugated perforated sheet 10 x 10 mm (aeration 40% superficie)
Square holes 30 x 30 mm, wire 3 mm (surface aeration 76%) Square holes 30 x 30 mm, wire 3 mm (surface aeration 76%)

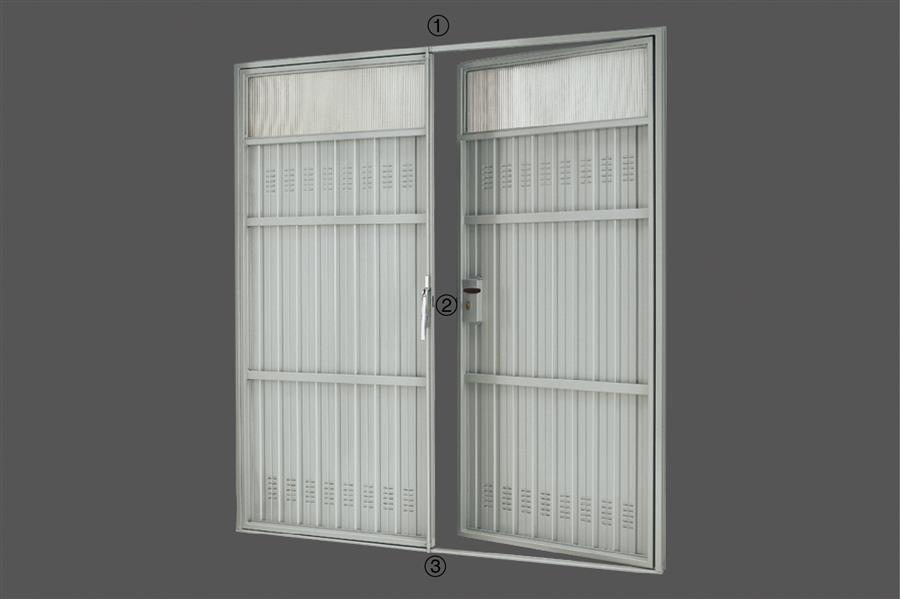

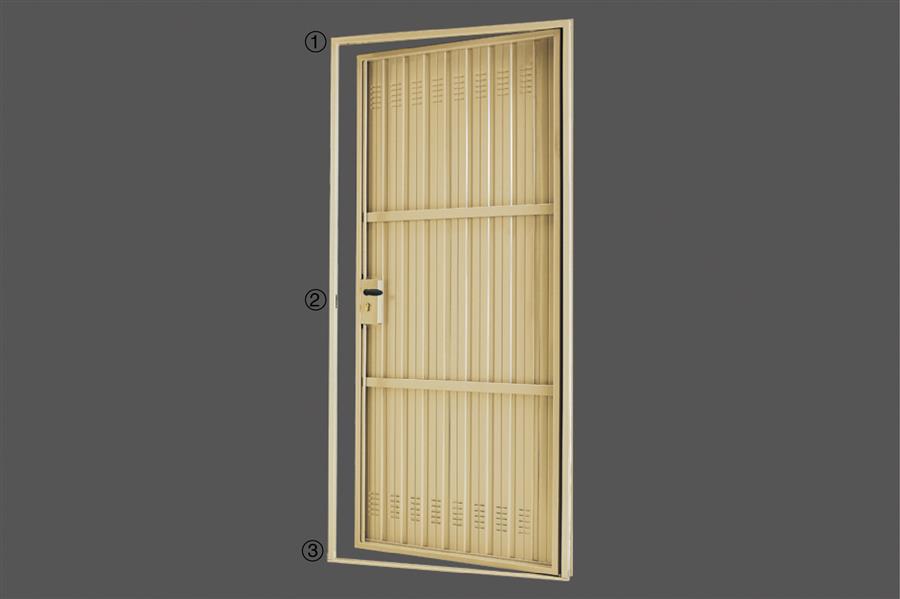

3-point locking system

For added security, the main wing lock is supplied with 3 point locking.

Single hinged steel door</br>1-2 locking points secondary door Single hinged steel door
1-2 locking points secondary door
Single hinged steel door</br>1-2 locking points secondary door</br>3 Locking handle secondary door Single hinged steel door
1-2 locking points secondary door
3 Locking handle secondary door

Other personalizations

INCREASED COAT

The coat can be increased with galvanized sheet of thickness 8/10.

INSULATION

To improve heat and sound insulation, the covering may be insulated: a sheet of high-density polystyrene is inserted between the external and the internal ribbed plate.
