STEEL DOOR
This is made entirely in pressed galvanised steel strengthened with internal omega-shape reinforcement so that it cannot buckle. It comes complete with frame plus anchoring rag bolts and may have left or right and push or pull opening. It is supplied complete with handle and lock for closing both from inside and outside. It is delivered ready assembled for easy fitting.

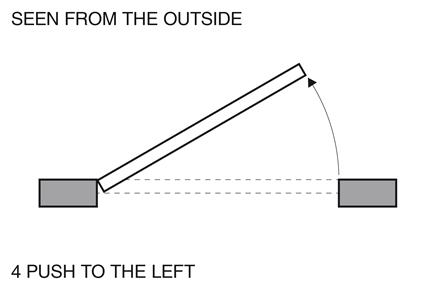

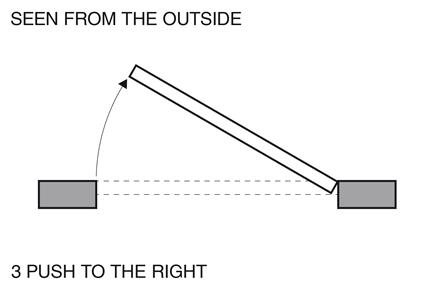

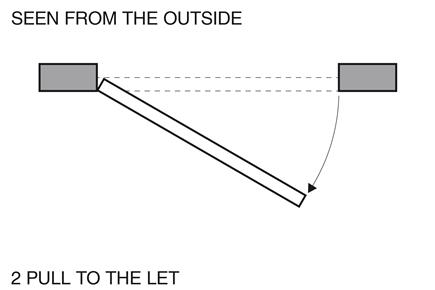

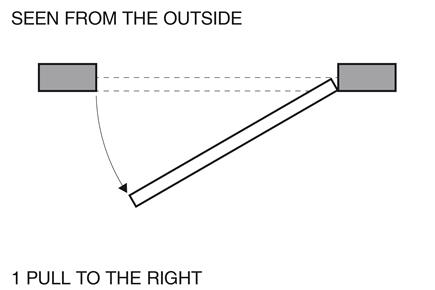

Opening method
The doors are supplied as standard with the right sense of openness to pull. Other versions are obtained by rotating the door and the hinges or frame.

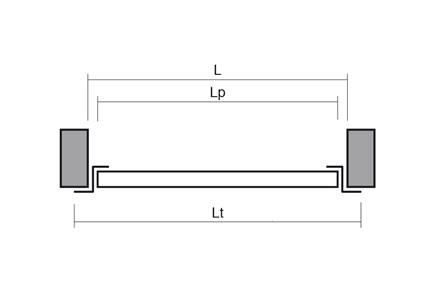

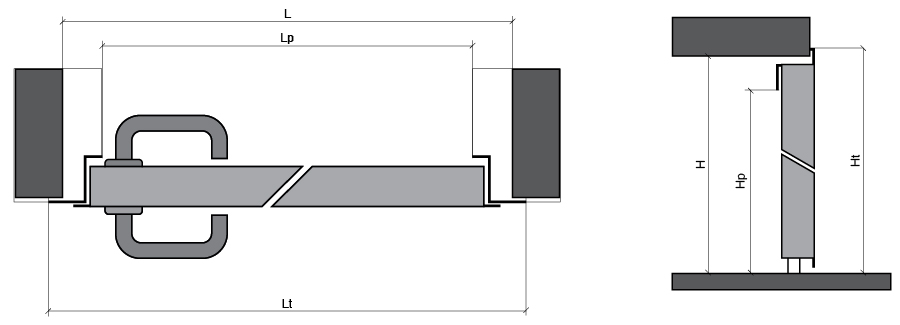

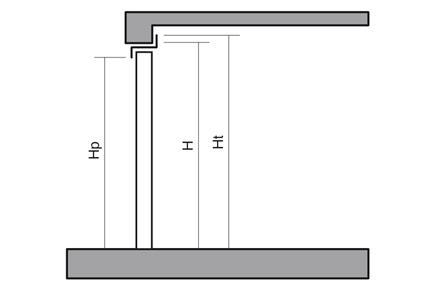

Dimensions
Case to “Z”.
L=light horizontal hole
H=light vertical hole
Lp=Passage width
Hp=passage height
Lt=outer frame width
Ht=outer frame height
| STANDARD MEASURES | |||
| Type | Wall hole W x H | Passageway Lp x Hp | Outer frame measures Lt x Ht |
| A | 72 X 200 / 210 | 68 X 197 / 207 | 79 X 202,5 / 212,5 |
| B | 82 X 200 / 210 | 78 X 197 / 207 | 89 X 202,5 / 212,5 |
| C | 92 X 200 / 210 | 88 X 197 / 207 | 99 X 202,5 / 212,5 |
| D | 102 X 200 / 210 | 98 X 197 / 207 | 109 X 202,5 / 212,5 |
