ELEGANCE
It is the new elegant and secure overhead door by De Nardi. The exterior is covered with 1 mm thick sheet metal panels vertically, horizontally or diagonally disposed; on request it comes insulated and internally completed with okoumè panels of 6 mm. It is painted with standard RAL colors, with stove-enamelled polyester powder finish for maximum weatherproofing. The frame has a larger cross section of 80 mm, for housing the rubber seal. Elegance overhead door are supplied with a YALE - type lock with protection defender, set-up for motor-drive unit, anti-fall system against the accidental breaking and anchoring rag bolts.
Sizes up to L 500 x H 280 cm

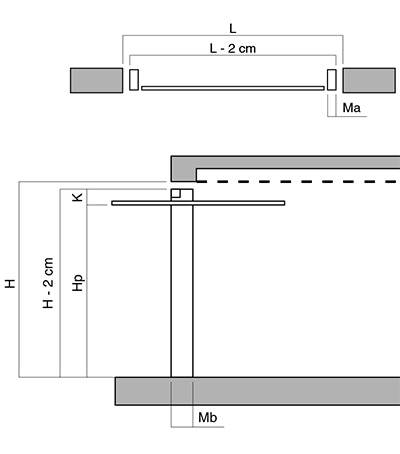

UPRIGHTS PROJECTING VERSION IN LIGHT
Ma = width of the upright
Mb = depth of the upright
L = light horizontal hole
H = light vertical hole
K = variable height depending on the model (see table)
Hp = H - 1cm - K = passage height
S = 7 cm normal non projecting version, 0 cm arc-non projecting version
| DIMENSIONS OF THE UPRIGHTS PROJECTING AND NON PROJECTING VERSION WITH OR WITHOUT ENGINES | |||
| FEATURES | Ma x Mb Up to L 340 x H 280 cm | Ma x Mb Up to L 420 x H 280 cm | Ma x Mb Up to L 500 x H 280 cm |
| WITHOUT INSULATION AND/OR PEDESTRIAN DOOR | 12 x 29 | 14 x 29 | 16 x 29 |
| WITH INSULATION AND/OR PEDESTRIAN DOOR | 16 x 29 | 18 x 29 | 18 x 29 (Contact De Nardi) |
Measures: Width up to 500 cm - Height up to 280 cm
K-height values:
Manual debordant elegance = 29
Motorized debordant elegance = 32
A tolerance of ± 2cm has to be considered for projecting version K measures. In any case, all the values in this table are to be considered as indicative and to be checked with the company technical office.

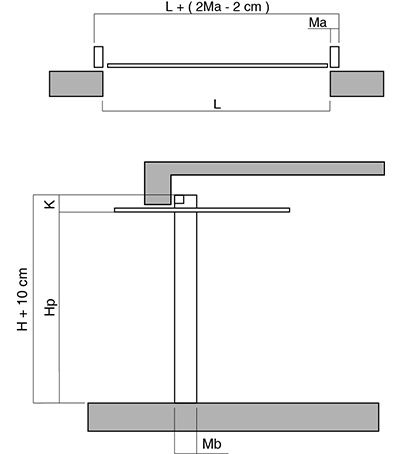

UPRIGHTS PROJECTING VERSION OVER LIGHT
Ma = width of the upright
Mb = depth of the upright
L = light horizontal hole
H = light vertical hole
K = variable height depending on the model (see table)
Hp = H - 1cm - K = passage height
S = 7 cm normal non projecting version, 0 cm arc-non projecting version
| DIMENSIONS OF THE UPRIGHTS PROJECTING AND NON PROJECTING VERSION WITH OR WITHOUT ENGINES | |||
| FEATURES | Ma x Mb Up to L 340 x H 290 cm | Ma x Mb Up to L 420 x H 290 cm | Ma x Mb Up to L 500 x H 290 cm |
| WITHOUT INSULATION AND/OR PEDESTRIAN DOOR | 12 x 29 | 14 x 29 | 16 x 29 |
| WITH INSULATION AND/OR PEDESTRIAN DOOR | 14 x 29 | 16 x 29 | 18 x 29 |
Measures: Width up to 500 cm - Height up to 280 cm
K-height values:
Manual debordant elegance = 29
Motorized debordant elegance = 32
A tolerance of ± 2cm has to be considered for projecting version K measures. In any case, all the values in this table are to be considered as indicative and to be checked with the company technical office.

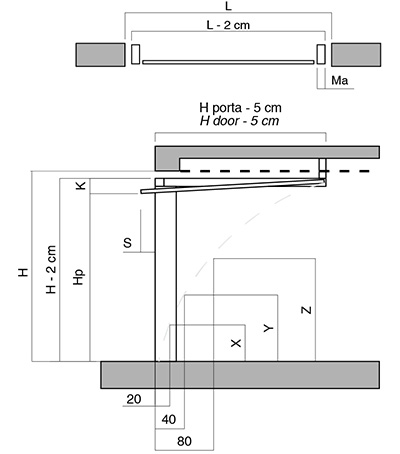

NON PROJECTING VERSION IN LIGHT
Ma = width of the upright
Mb = depth of the upright
L = light horizontal hole
H = light vertical hole
K = variable height depending on the model (see table)
Hp = H - 1cm - K = passage height
S = 7 cm normal non projecting version, 0 cm arc-non projecting version
| H | X | Y | Z |
| 200 | 50 | 81 | 131 |
| 210 | 50 | 83 | 133 |
| 220 | 50 | 85 | 135 |
| 230 | 50 | 87 | 137 |
| 240 | 50 | 89 | 139 |
| 250 | 50 | 91 | 141 |
| 260 | 50 | 93 | 143 |
| 270 | 50 | 95 | 145 |
K-height values:
Manual debordant elegance = 21
Motorized debordant elegance = 24
A tolerance of ± 2cm has to be considered for projecting version K measures. In any case, all the values in this table are to be considered as indicative and to be checked with the company technical office.

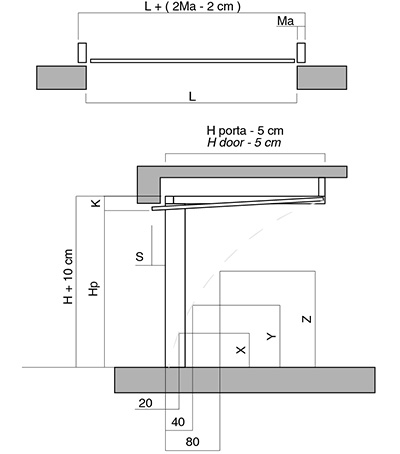

NON-PROJECTING VERSION OVER LIGHT
Ma = width of the upright
Mb = depth of the upright
L = light horizontal hole
H = light vertical hole
K = variable height depending on the model (see table)
Hp = H - 1cm - K = passage height
S = 7 cm normal non projecting version, 0 cm arc-non projecting version

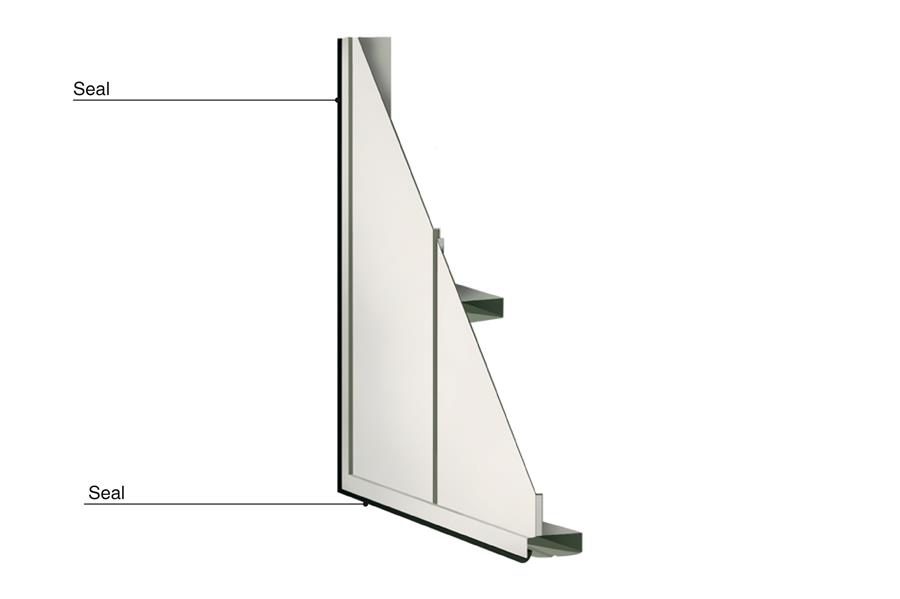

Section of the mantle
In all ELEGANCE overhead doors a special gasket is installed, inserted into the housing of the frame, which guarantees a good resistance to air infiltration.

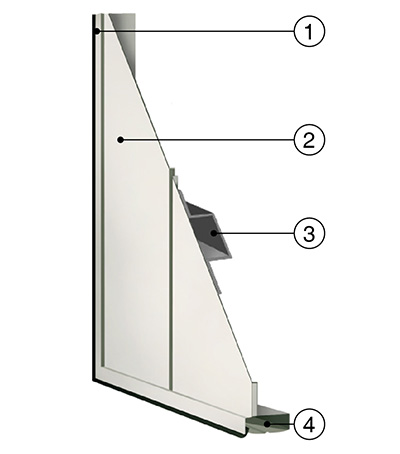

NON-INSULATED VERSION
1. gasket 2. metal sheet
3. metal crossbeams 4. frame

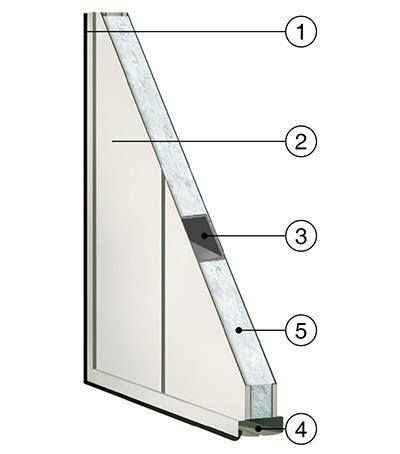

INSULATED VERSION
1. gasket 2. metal sheet
3. metal crossbeams 4. frame
5. high density self-extinguishing polystyrene
