BASIC 16
It is the version with jambs of 8 cm. The door frame is made with an exclusive reinforced 60 mm steel profile designed to house the rubber sealing strip. A practical system of counterweights is inserted into the galvanized steel side uprights for an easy and effortless opening. Metal parts are galvanized and painted on request with RAL colors and with stove-enamelled polyester-powder finish for maximum weatherproofing. The door cover is made with 12 mm thick multilayer okoumè panels, with 100 mm vertical grooves, treated with fillers and water-based paint varnishes. The BASIC 16 overhead door is supplied with a Yale - type lock with handle and internal release, an anti-fall device and anchoring rag bolts.
Sizes up to L 300 x H 265 cm
Size version in light
Ma = width of the upright
Mb = depth of the upright
L = light horizontal hole
H = light vertical hole
K = variable height depending on the model (see table)
Hp = H - 1cm - K = passage height
S = 7 cm normal non projecting version, 0 cm arc-non projecting version
Features | Ma x Mb | Ma x Mb |
BASIC 16 | 8 x 22 | 8 x 22 |
Measurements: width up to 300 cm - height up to 265 cm
Size version over light
Ma = width of the upright
Mb = depth of the upright
L = light horizontal hole
H = light vertical hole
K = variable height depending on the model (see table)
Hp = H - 1cm - K = passage height
S = 7 cm normal non projecting version, 0 cm arc-non projecting version
Non projecting version
Ma = width of the upright
Mb = depth of the upright
L = light horizontal hole
H = light vertical hole
K = variable height depending on the model (see table)
Hp = H - 1cm - K = passage height
S = 7 cm normal non projecting version, 0 cm arc-non projecting version
| H | X | Y | Z |
| 200 | 50 | 81 | 131 |
| 210 | 50 | 83 | 133 |
| 220 | 50 | 85 | 135 |
| 230 | 50 | 87 | 137 |
| 240 | 50 | 89 | 139 |
| 250 | 50 | 91 | 141 |
| 260 | 50 | 93 | 143 |
| 270 | 50 | 95 | 145 |
Non-projecting over light
Ma = width of the upright
Mb = depth of the upright
L = light horizontal hole
H = light vertical hole
K = variable height depending on the model (see table)
Hp = H - 1cm - K = passage height
S = 7 cm normal non projecting version, 0 cm arc-non projecting version

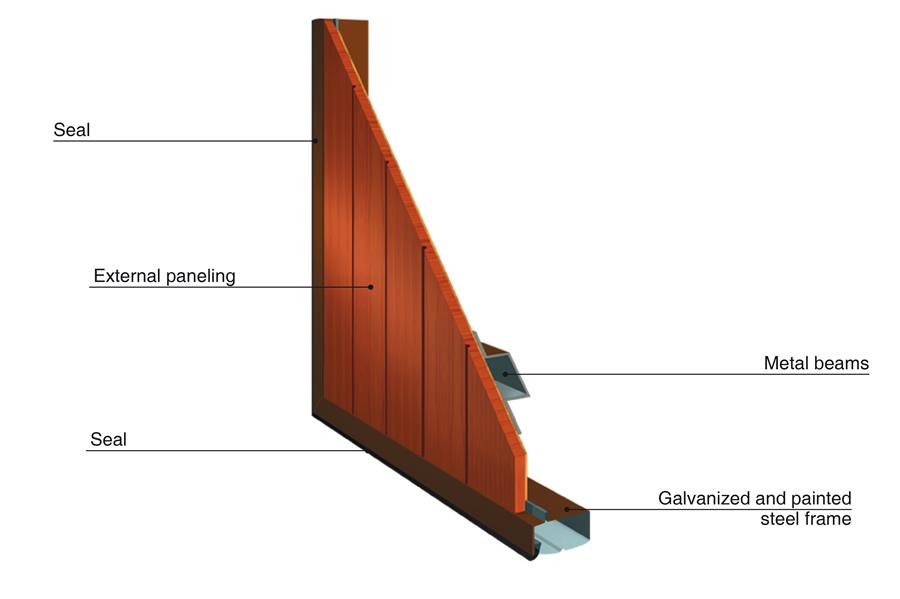

Section of the mantle
BASIC 16
1. Exterior paneling in multilayer okoumè 2. Gasket 3. Metal frame 4. Metal crossbeams
