NORMAL PLUS

Is the overhead door distinguished by the wood covering of the outer frame metal parts (jambs and head).
A layer of high density selfextinguishing polystyrene is also inserted between the external matchboarding and the internal panel that guarantee an excellent heat and sound insulation. The door frame is made with an exclusive reinforced steel profile designed to house the rubber sealing strip. A pratical system of counterweights is inserted into the galvanised steel side uprights for easy, effortless opening. The metal parts are galvanised and standard painted in a dark brown colour or ral-colours with stove-enamelled polyester powder finish for maximum weatherproofing the vertical panelling or the special aesthetics of the door are done with various types of wood, all guaranteed by a long-term seasoning and a specific treatment. The wood is treated with fillers and resin-based paint varnishes in aqueous dispersion, thereby ensuring absolute non-toxicity for the indoor environment in order to safeguard the inhabitants. The NORMAL PLUS overhead door may be supplied with pedestrian door, glazed areas and, for even easier opening, with an electronic motor. NORMAL PLUS comes supplied complete with Yale lock with handle, anti-fall system against the accidental breaking of the cables, anchoring rag bolts; is delivered ready assembled for easy fitting and packed with polyethylene sheets.

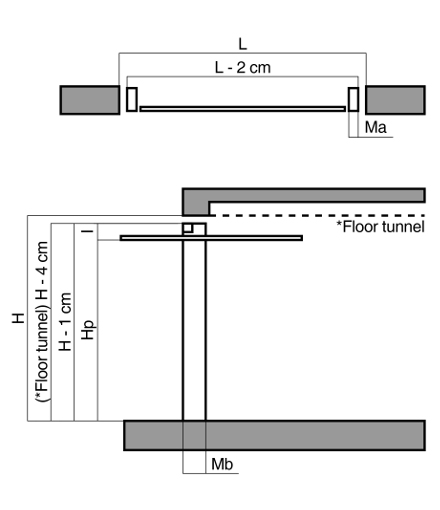

Size version in light

















Ma = width of the upright
Mb = depth of the upright
L = light horizontal hole
H = light vertical hole
K = variable height depending on the model (see table)
Hp = H - 1cm - K = passage height
S = 7 cm normal non projecting version, 0 cm arc-non projecting version

DIMENSIONS OF THE UPRIGHTS PROJECTING AND NON PROJECTING VERSION
WITH OR WITHOUT ENGINES
FEATURES Ma x Mb
Up to L 340 x H 280 cm
Ma x Mb
Up to L 420 x H 280 cm
Ma x Mb
Up to L 550 x H 280 cm
ANY12 x 2914 x 2916 x 29
VERSION WITH PEDESTRIAN DOOR OR GLAZED FANLIGHT
OR NON-PROJECTING OR MOTORIZED
14 x 2916 x 2918 x 29
VERSION WITH PEDESTRIAN DOOR + GLAZED FANLIGHT
+ NON-PROJECTING + MOTORIZED
16 x 2918 x 2918 x 29
(Contact office)

Measures: Widht up to 550 cm - Height up to 280 cm

Size version over light

















Ma = width of the upright
Mb = depth of the upright
L = light horizontal hole
H = light vertical hole
K = variable height depending on the model (see table)
Hp = H - 1cm - K = passage height
S = 7 cm normal non projecting version, 0 cm arc-non projecting version

Non projecting version








L=light horizontal hole
H=light vertical hole
Hp=passage height
I=23 cm manual, 26 cm motorized
Ma=width of the upright
Mb=depth of the upright

HXYZ
2005081131
2105083133
2205085135
2305087137
2405089139
2505091141
2605093143
2705095145

Non-projecting over light

















Ma = width of the upright
Mb = depth of the upright
L = light horizontal hole
H = light vertical hole
K = variable height depending on the model (see table)
Hp = H - 1cm - K = passage height
S = 7 cm normal non projecting version, 0 cm arc-non projecting version

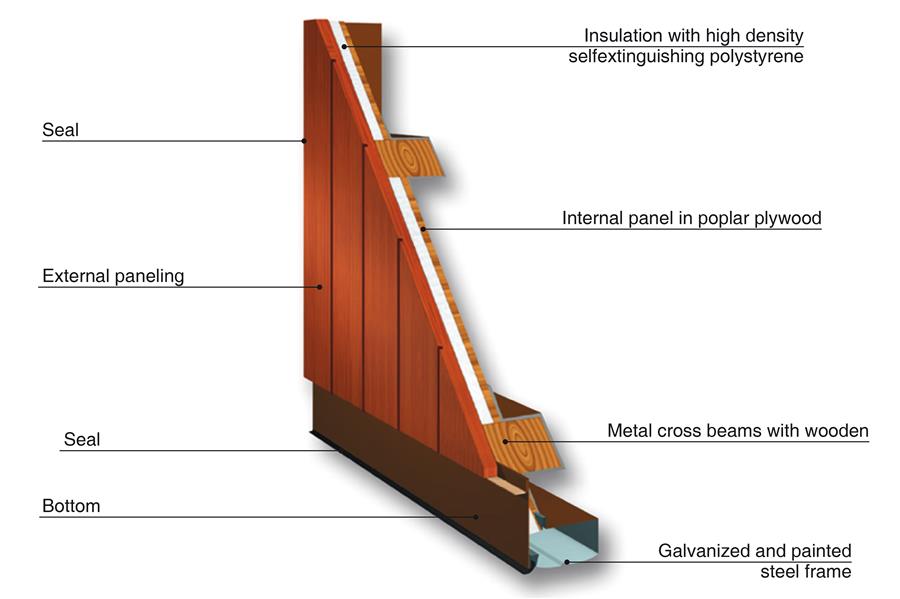

Section of the mantle

In the NORMAL PLUS version a thick layer of high-density selfextinguishing polystyrene has been inserted between the external door covering and the internal panel to provide good sound-proofing and to improve heat insulation.
