NORMAL
Normal is the basic version of the De Nardi overhead doors. The door frame is made with an exclusive reinforced steel profile designed to house the rubber sealing strip. A practical system of counterweights is inserted into the galvanized steel side uprights for easy, effortless opening. Metal parts are galvanized and painted on request with RAL colors and with stove-enamelled polyester-powder finish for maximum weatherproofing. The door is covered in okoumè wood multilayer panels on the outside with grout lines in different compositions. The overhead door Normal is lined on the inside, between the metal omega-shape bars, with plywood panels. The overhead door Normal may be supplied with a pedestrian door, glazed area and, for an even easier opening, with an electric motor. Normal is supplied with a Yale - type lock with handle, an anti-fall system and anchoring rag bolts.
Sizes up to L 550 x H 280 cm
Size version in light
Ma = width of the upright
Mb = depth of the upright
L = light horizontal hole
H = light vertical hole
K = variable height depending on the model (see table)
Hp = H - 1cm - K = passage height
S = 7 cm normal non projecting version, 0 cm arc-non projecting version
| DIMENSIONS OF THE UPRIGHTS PROJECTING AND NON PROJECTING VERSION WITH OR WITHOUT ENGINES | |||
| FEATURES | Ma x Mb Up to L 340 x H 280 cm | Ma x Mb Up to L 420 x H 280 cm | Ma x Mb Up to L 550 x H 280 cm |
| ANY | 12 x 29 | 14 x 29 | 16 x 29 |
VERSION WITH PEDESTRIAN DOOR OR GLAZED FANLIGHT | 14 x 29 | 16 x 29 | 18 x 29 |
VERSION WITH PEDESTRIAN DOOR + GLAZED FANLIGHT | 16 x 29 | 18 x 29 | 18 x 29 (Contact office) |
Measures: Widht up to 550 cm - Height up to 280 cm
Size version over light
Ma = width of the upright
Mb = depth of the upright
L = light horizontal hole
H = light vertical hole
K = variable height depending on the model (see table)
Hp = H - 1cm - K = passage height
S = 7 cm normal non projecting version, 0 cm arc-non projecting version

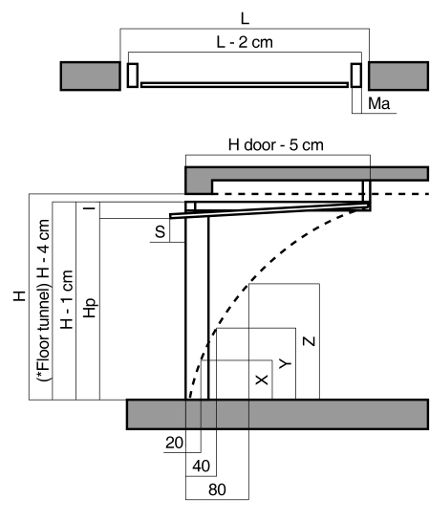

Non projecting version
Ma = width of the upright
Mb = depth of the upright
L = light horizontal hole
H = light vertical hole
K = variable height depending on the model (see table)
Hp = H - 1cm - K = passage height
S = 7 cm normal non projecting version, 0 cm arc-non projecting version
| H | X | Y | Z |
| 200 | 50 | 81 | 131 |
| 210 | 50 | 83 | 133 |
| 220 | 50 | 85 | 135 |
| 230 | 50 | 87 | 137 |
| 240 | 50 | 89 | 139 |
| 250 | 50 | 91 | 141 |
| 260 | 50 | 93 | 143 |
| 270 | 50 | 95 | 145 |
Non-projecting over light
Ma = width of the upright
Mb = depth of the upright
L = light horizontal hole
H = light vertical hole
K = variable height depending on the model (see table)
Hp = H - 1cm - K = passage height
S = 7 cm normal non projecting version, 0 cm arc-non projecting version

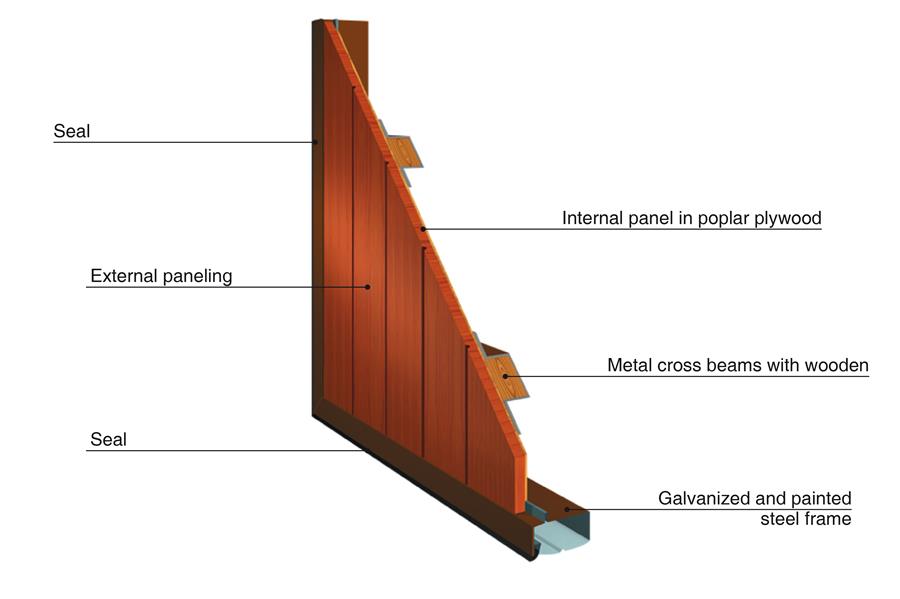

Section of the mantle
The NORMAL version is characterized by the combination between the outer coating and an inner pannel of poplar plywood.
