MULTIPURPOSE DOORS
SINGLE HINGED MULTIPURPOSE DOOR
Made in galvanised steel, strengthened with internal rigid reinforcement in alveolar fibre, total thickness 39 mm. Standard locking with cylinder hole and insert for patent type keys, included. Black accident-proof handle with steel core. Thermoset epoxy powder paintwork with scratchproof embossed finish, standard colour RAL 1015. For a personalized choice, are available to order, all the colors of the RAL range. Reversible door with bottom rebate adaptable to the finished floor or removable. All doors designed for application of the 3-point locking system kit. Angle frame assembled for fixing on site with rag bolts/anchors.
DOUBLE HINGED MULTIPURPOSE DOOR
Made in galvanised steel, strengthened with internal rigid reinforcement in alveolar fibre, total thickness 39 mm. Standard locking with cylinder hole and insert for patent type keys, included. Black accident-proof handle with steel core. Thermoset epoxy powder paintwork with scratchproof embossed finish, standard colour RAL 1015. For a personalized choice, are available to order, all the colors of the RAL range. Reversible door with bottom rebate adaptable to the finished floor or removable. All doors are designed for application of the 3-point locking system kit. Angle frame assembled for fixing on site with rag bolts/anchors. Secondary door with central dog bold for upper and a lower locking.

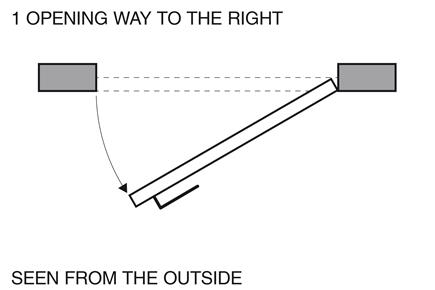

Opening method

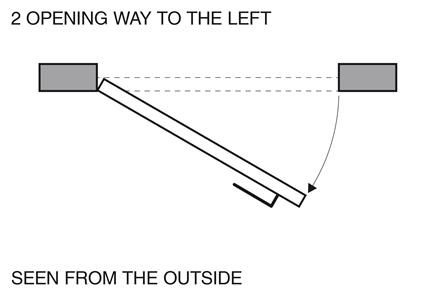

SINGLE HINGED MULTIPURPOSE DOOR

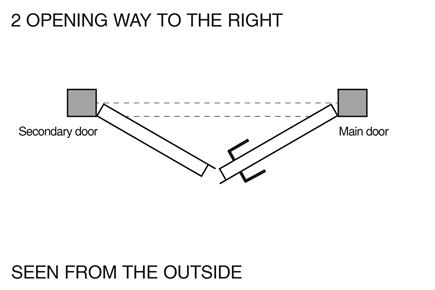

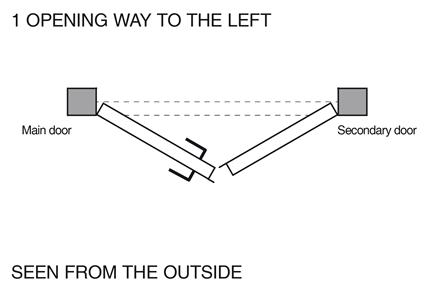

DOUBLE HINGED MULTIPURPOSE DOOR


Dimensions

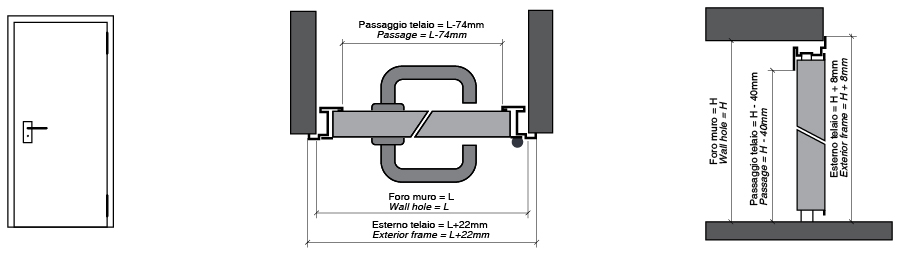

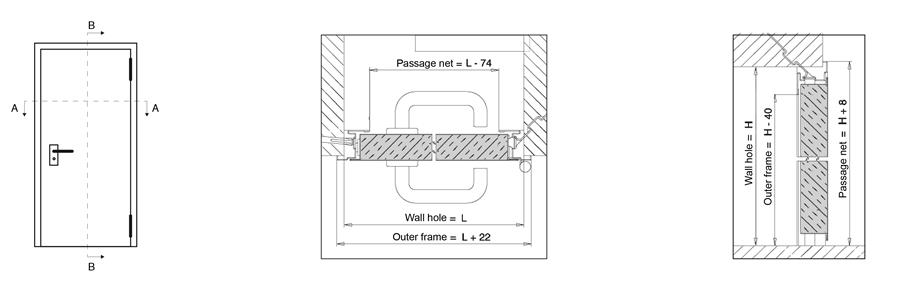

SINGLE HINGED DOOR - STANDARD DIMENSION AND CUSTOM-TAILORED

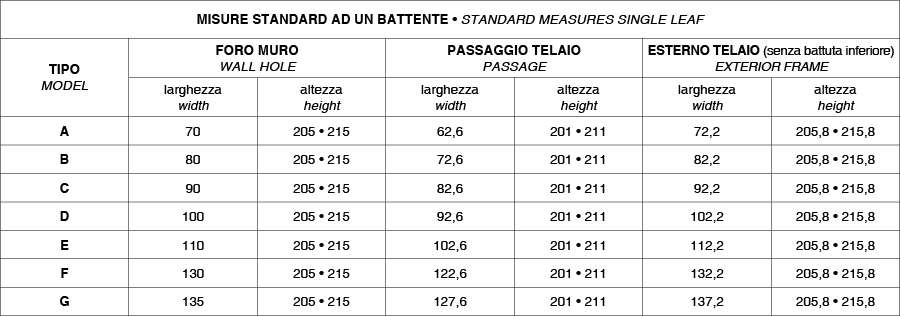

STANDARD MEASURES SINGLE HINGED MULTIPURPOSE DOOR | ||||||
Type | Hole wall | Frame passage | External frame (without lower bottom) | |||
width | height made | width | height made | width | height made | |
A | 70 | 205 • 215 | 62,6 | 201 • 211 | 72,2 | 205,8 • 215,8 |
B | 80 | 205 • 215 | 72,6 | 201 • 211 | 82,2 | 205,8 • 215,8 |
C | 90 | 205 • 215 | 82,6 | 201 • 211 | 92,2 | 205,8 • 215,8 |
D | 100 | 205 • 215 | 92,6 | 201 • 211 | 102,2 | 205,8 • 215,8 |
E | 135 | 205 • 215 | 127,6 | 201 • 211 | 137,2 | 205,8 • 215,8 |

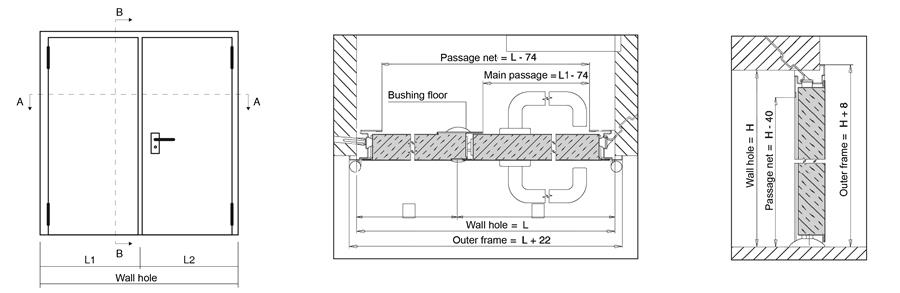

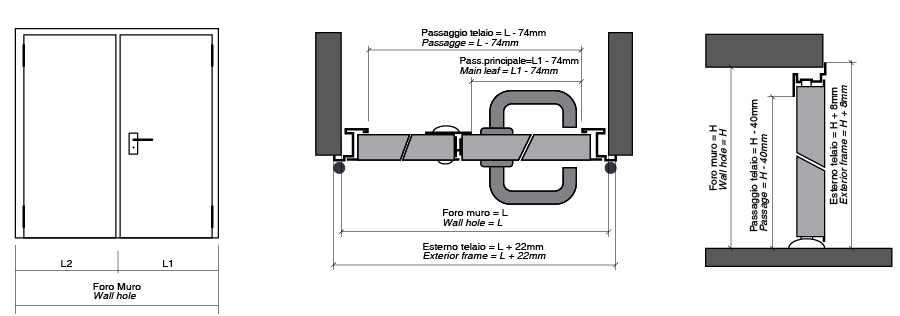

DOUBLE HINGED DOOR - STANDARD DIMENSION AND CUSTOM-TAILORED

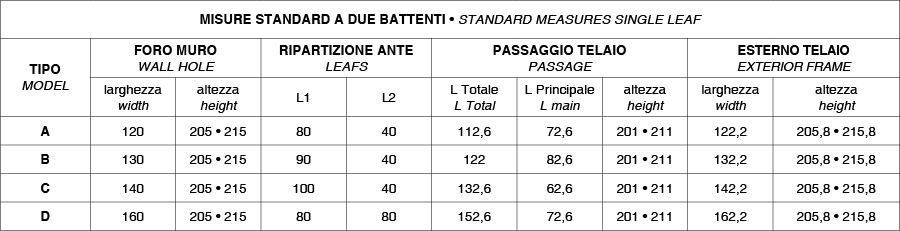

STANDARD MEASURES DOUBLE HINGED MULTIPURPOSE DOOR | |||||||||
Type | Hole wall | Door allocation | Frame passage | Outer frame | |||||
width | height made | Princ L1 | Second L2 | L.Tot | L.Princ | width | width | height | |
A | 120 | 205 • 215 | 80 | 40 | 112,6 | 71,9 | 201 • 211 | 122,2 | 205,5 • 218 |
B | 130 | 205 • 215 | 80 | 40 | 122 | 82,6 | 201 • 211 | 132,2 | 205,5 • 218 |
C | 140 | 205 • 215 | 80 | 70 | 132 | 62,6 | 201 • 211 | 142,2 | 205,5 • 218 |
D | 160 | 205 • 215 | 80 | 80 | 152 | 72,6 | 201 • 211 | 162,2 | 205,5 • 218 |
