FIRE DOORS

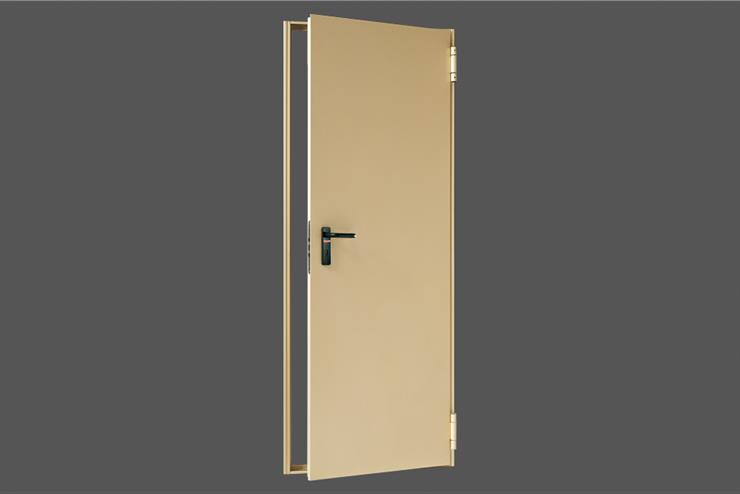

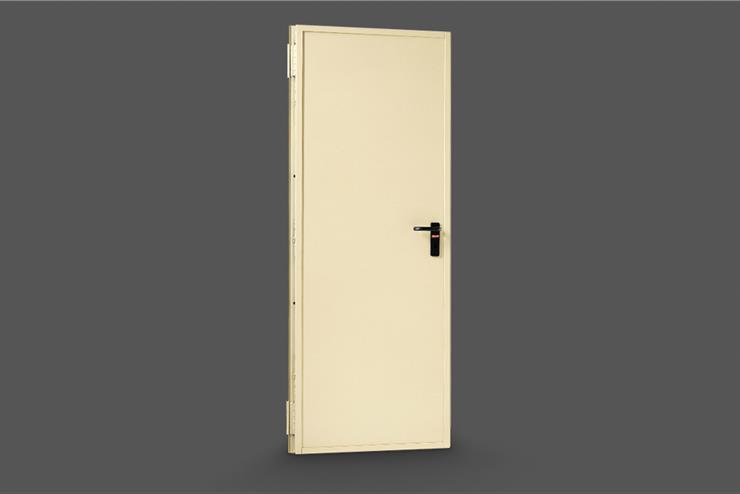

SINGLE HINGED FIRE DOOR
Sandwich panel door in galvanised plate; insulated with insulating materials, total thickness: REI60=50 mm / REI 120=60 mm. Angle frame in galvanised steel section with rag bolts for walling, joints for assembly on site and screwable bottom spacer. Lock with cylinder hole and inserts for patent type key. Sealing guard in the door rebate on the hinge side. Black accident-proof handle with steel core, complete with plates with cylinder hole and inserts for patent type key. N. 2 hinges one of which with spring for self-closing and fitted with thrust bearings and screws for vertical adjustment. Internal door reinforcements for possible mounting of door stop and panic handle. Heat-expanding sealing strip in relative groove on frame and in the bottom of the door. Indicator plate with reference data, applied on door rebate.

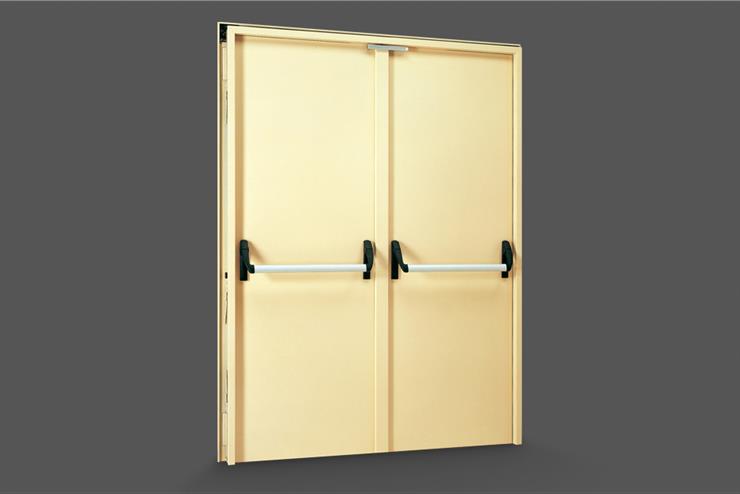

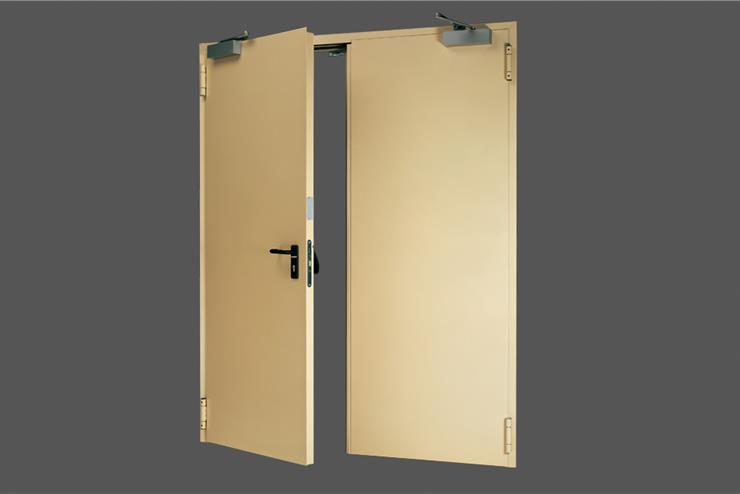

DOUBLE HINGED FIRE DOOR
Sandwich panel door in galvanised plate, insulated with insulating materials, without bottom rebate, total thickness 60 mm. Angle frame in galvanised steel section with rag bolts for walling, joints for assembly on site and screwable bottom spacer. Lock on secondary door for self-locking, with opening lever latch. Seat of self-locking lock on secondary door, also designed for application of panic handle lock. Sealing guard in the door rebate on the hinge side. Black accident-proof handle with steel core, complete with plates with cylinder hole and inserts for patent type key. Indicator plate with reference data.

Interior/External finish • RAL colours

1015 1015
1003 1003
3000 3000
3003 3003
9002 9002
8019 8019
3005 3005
5013 5013
6005 6005
6009 6009
6011 6011
6029 6029
7001 7001
7030 7030
7032 7032
7035 7035
8007 8007
8011 8011
8014 8014
8017 8017
7016 7016
9003 9003
9010 9010
9005 9005

POLYESTER POWDER-COATED PAINT FINISH FOR THE FRAME

The quality and durability of the De Nardi overhead doors are guaranteed thanks to the stove-enamelled polyester powder paint finish. The painting is carried out in the up-to date automated plant, where it goes through an efficient production cycle: phosphating-cleaning/degreasing in a tunnel, double rinsing-kiln drying at 130°-polyester powder spraying in robotised or manual booth (average thickness 40 micron)-drying in oven at 200°C.
