STEEL DOORS PRATIC

PRATIC STEEL DOOR - SINGLE LEAF
It is made entirely in pressed galvanized steel and it is strengthened with internal tubular reinforcements that make it crushproof. The door frame is made with a galvanized - steel tubular profile. It is delivered already assembled for an easier fitting, with anchoring rag bolts and a Yale - type lock with handle for both from outside and inside closure. Ral finishes are the same as the PRATIC overhead doors.

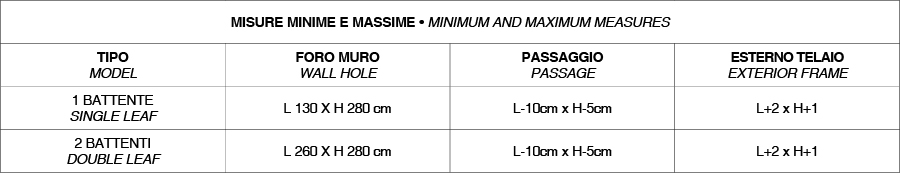

Minimum measures: 60 cm width - 160 cm height
Maximum measures: 130 cm width - 280 cm height

PRATIC STEEL DOOR - DOUBLE LEAF
It is made entirely in pressed galvanized steel and it is strengthened with internal tubular reinforcements that make it crushproof. The door frame is made with a galvanized steel tubular profile. It is delivered already assembled for an easier fitting and supplied with one handle for both internal and external closure of the main door and another handle with internal release for closure of the secondary door.

Minimum measures: 120 cm width - 160 cm height
Maximum measures: 260 cm width - 280 cm height

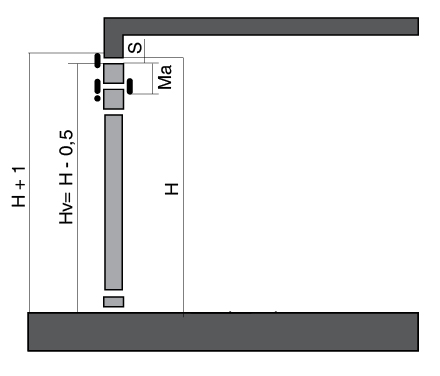

Dimensions

STEEL DOORS PRATIC

L = horizontal hole light
Lt = outer frame width
Lv = inner frame width
Lp = passage width
S = space between the wall and the frame = 0,5 cm
H = vertical hole light
H+1 = exterior frame height
Hv = internal frame height
Ma = pillar width 4,5 cm
Mb = depth pillar 4,3 cm
