PRATIC
Model 12
12 is the overhead door with counterweights made in pressed-and-reinforced galvanized steel, with jambs of only 6 cm. The door frame is made with an exclusive galvanised steel profile of 60 mm, in which a rubber sealing strip can be housed. It comes already assembled with a Yale - type lock with handle and internal release, cement counterweights, ropes, anchoring rag bolts and anti-fall device.
Sizes up to L 250 x H 260 cm
Model 16
16 is the overhead door with counterweights made in pressed-and-reinforced galvanized steel, with jambs of only 8 cm. The door frame is made with an exclusive galvanized steel profile of 60 mm, in which a rubber sealing strip can be housed. It comes ready assembled complete with a Yale - type lock with handle and internal release, cement counterweights, anti-fall device, ropes, anchoring rag bolts and anti-fall device.
Sizes up to L 340 x H 280 cm
Model SPECIAL
Special is the overhead door with counterweights made in pressed-and-reinforced galvanized steel, with jambs of 12-18 cm. The door frame is made with an exclusive reinforced steel profile of 80 mm, designed to house the rubber sealing strip. It comes ready assembled complete with a Yale - type lock with handle and internal release, set-up for motor-drive unit, anti-fall system, cement counterweights, ropes, anchoring rag bolts and anti-fall device.
Sizes up to L 650 x H 280 cm
Thicker covering with 8/10 thick galvanized sheet steel are available on request.

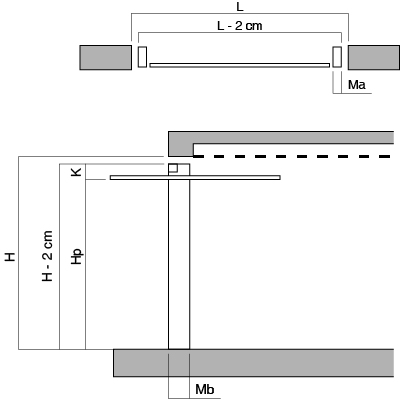

Size version in light
non debordante oltreluce
Ma = width of the upright
Mb = depth of the upright
L = light horizontal hole
H = light vertical hole
K = variable height depending on the model (see table)
Hp = H - 1cm - K = passage height
S = 7 cm normal non projecting version, 0 cm arc-non projecting version
Ma = width of the upright
Mb = depth of the upright
L = light horizontal hole
H = light vertical hole
K = variable height depending on the model (see table)
Hp = H - 1cm - K = passage height
S = 7 cm normal non projecting version, 0 cm arc-non projecting version
PRATIC 12
| DIMENSIONS OF THE UPRIGHTS PROJECTING AND NON PROJECTING VERSION WITH OR WITHOUT ENGINES | |||
| Ma x Mb Up to L 250 x H 265 cm | |||
| 6 x 25 |
Measures: Width up to 250 cm - Height up to 265 cm
PRATIC 16
| DIMENSIONS OF THE UPRIGHTS PROJECTING AND NON PROJECTING VERSION WITH OR WITHOUT ENGINES | |||
| Ma x Mb Up to L 340 x H 280 cm | |||
| 8 x 22 |
Measures: Width up to 340 cm - Height up to 280 cm
PRATIC SPECIAL
| DIMENSIONS OF THE UPRIGHTS PROJECTING AND NON PROJECTING VERSION WITH OR WITHOUT ENGINES | ||||
| FEATURES | Ma x Mb Up to L 420 x H 280 cm | Ma x Mb Up to L 500 x H 280 cm | Ma x Mb Up to L 550 x H 280 cm | Ma x Mb Up to L 650 x H 280 cm |
| PEDESTRIAN DOOR + GLAZED FANLIGHTS + NON PROJECTING | 12 x 29 | 12 x 29 | 14 x 29 | / |
| INSULATED / PERFORATED / MOTORIZED WITH ANY FEATURES | 12 x 29 | 14 x 29 | 14 x 29 | / |
| GRIDDED / MOTORIZED WITH ANY FEATURES | 12 x 29 | 16 x 29 | 16 x 29 | 18 x 29 |
| PLATED / MOTORIZED WITH ANY FEATURES | 14 x 29 | 16 x 29 | 16 x 29 | 18 x 29 |
Measures: Width up to 650 cm - Height up to 280 cm
Size version over light
L=light horizontal hole
H=light vertical hole
Hp=passage height
Ma=width of the upright
Mb=depth of the upright
P12 e P16
I=25 cm manual, 28 cm motorized
Special
I=29 cm manual, 32 cm motorized
PRATIC 12
| DIMENSIONS OF THE UPRIGHTS PROJECTING AND NON PROJECTING VERSION WITH OR WITHOUT ENGINES | |||
| Ma x Mb Up to L 250 x H 265 cm | |||
| 6 x 25 |
Measures: Width up to 250 cm - Height up to 265 cm
PRATIC 16
| DIMENSIONS OF THE UPRIGHTS PROJECTING AND NON PROJECTING VERSION WITH OR WITHOUT ENGINES | |||
| Ma x Mb Up to L 340 x H 280 cm | |||
| 8 x 22 |
Measures: Width up to 340 cm - Height up to 280 cm
PRATIC SPECIAL
| DIMENSIONS OF THE UPRIGHTS PROJECTING AND NON PROJECTING VERSION WITH OR WITHOUT ENGINES | ||||
| FEATURES | Ma x Mb Up to L 420 x H 280 cm | Ma x Mb Up to L 500 x H 280 cm | Ma x Mb Up to L 550 x H 280 cm | Ma x Mb Up to L 650 x H 280 cm |
| PEDESTRIAN DOOR + GLAZED FANLIGHTS + NON PROJECTING | 12 x 29 | 12 x 29 | 14 x 29 | / |
| INSULATED / PERFORATED / MOTORIZED WITH ANY FEATURES | 12 x 29 | 14 x 29 | 14 x 29 | / |
| GRIDDED / MOTORIZED WITH ANY FEATURES | 12 x 29 | 16 x 29 | 16 x 29 | 18 x 29 |
| PLATED / MOTORIZED WITH ANY FEATURES | 14 x 29 | 16 x 29 | 16 x 29 | 18 x 29 |
Measures: Width up to 650 cm - Height up to 280 cm
Non-projecting in light version
L=Horizontal hole light
H=Outer frame width
Hp=passage height
S=7 cm normal non projecting version, 0 cm arch non projecting
Ma=width of the upright
Mb=depth of the upright
P12 e P16
I=19 cm manual, 22 cm motorized
Special
I=21 cm manual, 24 cm motorized
| H | X | Y | Z |
| 200 | 50 | 81 | 131 |
| 210 | 50 | 83 | 133 |
| 220 | 50 | 85 | 135 |
| 230 | 50 | 87 | 137 |
| 240 | 50 | 89 | 139 |
| 250 | 50 | 91 | 141 |
| 260 | 50 | 93 | 143 |
| 270 | 50 | 95 | 145 |
Non-projecting over light version
Ma = width of the upright
Mb = depth of the upright
L = light horizontal hole
H = light vertical hole
K = variable height depending on the model (see table)
Hp = H - 1cm - K = passage height
S = 7 cm normal non projecting version, 0 cm arc-non projecting version
